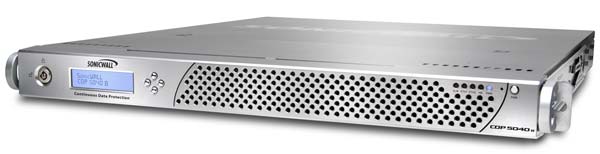

SonicWALL CDP 5040B

Overview:

Preserve, Replicate, Archive, Govern and Restore Data with Ease

The SonicWALL® Continuous Data Protection (CDP) 6.0 is a next-generation data protection solution that automatically preserves and protects business-relevant data assets against severe data loss from common disasters, by providing administrative policy governance to enforce backup policies for specified users or groups. The solution enables organizations to preserve, replicate, archive, govern and restore data with ease across Windows®, Mac OS® and Linux® platforms from anywhere and at any time. The SonicWALL CDP Series provides a more intelligent and systematic data protection strategy for organizations that are struggling with the reliability and uncertainty of their backup and recovery results.

SonicWALL CDP is a highly reliable, enterprise-grade data protection solution designed to scale from small- to large IT environments. Re-architected from the ground up, the CDP Series delivers highly efficient, globally enforced policy control over the entire backup operation. SonicWALL CDP also optimizes storage and bandwidth utilization through data de-duplication in conjunction with Volume Shadow Copy Service (VSS) Snapshot and the new CDP File Set backup methodology. The CDP Series empowers users to restore and personalize backup rules, while ensuring they comply with universal backup policy determined by IT. Powerful administrative policy streamlines backup operations and manages information assets more efficiently and intelligently.

• Administrative policy governance
• Granular backup control rules
• Windows Installer support
• Multiple backup methodologies
• Agent-based data de-duplication
• SonicWALL Global Management System
• Recovery manager for Exchange
• Multi-platform support
• Microsoft application support
• Self-directed file restore
• All-in-one integrated software, hardware and storage

Complete End-to-End Backup and Recovery

Complete End-to-End Backup and Recovery The SonicWALL Continuous Data Protection (CDP) 210 is ideal for small, remote or branch offices requiring flexible disaster recovery for workstations with usable capacity of up to 1.7 TB.

The SonicWALL Continuous Data Protection (CDP) 220 is ideal for small, remote or branch offices and distributed environments requiring flexible disaster recovery for multiple workstations and servers with usable capacity of up to 3.4 TB.

The SonicWALL Continuous Data Protection (CDP) 5040B is ideal for smallto- medium sized organizations demanding high capacity and flexible disaster recovery for multiple workstations and multiple server applications with RAID 5 and usable capacity of up to 10 TB. The CDP 5040B is designed as an upstream unit in a site-to-site data backup environment.

The SonicWALL Continuous Data Protection (CDP) 6080B is ideal for larger organizations with multiple workstations and server applications, with usable capacity of up to 20 TB, flexible disaster recovery options, RAID 5, and replaceable drives and power supplies. The CDP 6080B is a perfect upstream unit to backup multiple CDP appliances in a site-to-site data backup environment.

Features & Benefits:

• Administrative policy governance enables administrators to globally enforce defined backup policies for specified users or groups ensuring only business-relevant data assets are automatically preserved and protected against common disasters that cause severe data loss.
• Granular backup control rules enables a sustainable data reduction strategy that intelligently identifies, captures and preserves valuable information, while eliminating the costly backup and storage of irrelevant or outdated data.
• Windows Installer support enables administrators to install agents remotely to all devices in an Active Directory network. Once installed, agents can discover and selectively connect to any available CDP device broadcasting on the same domain, and backup can occur almost instantly.
• Multiple backup methodologies allow IT administrators to select from either continuous data protection or point-in-time snap shots providing data recovery and disaster resiliency to support flexible Recovery Point Objective (RPO) and recovery responsiveness.
• Agent-based data de-duplication optimizes storage and bandwidth utilization, as well as significantly increases backup efficiency and performance by eliminating redundant data blocks at the source, enabling IT to drastically shorten backup windows, minimize bandwidth utilization, optimize storage, improve performance and reduce operational costs.
• SonicWALL Global Management System helps distributed enterprises manage policies, reports, diagnostics, backup automation, restores, statistics, licensing information and export and import settings for multiple CDP deployments—at the device, device group or global level—using a simple-yet-robust centralized Web console.
• Recovery manager for Exchange® lets administrators search, compare and restore individual, criteria-specific items—including single messages, multiple mailboxes and public folders—from un-mounted .edb files, without setting up a dedicated recovery server.
• Multi-platform support for Windows, Mac OS or Linux.
• Microsoft® application support for SQL®, Exchange and Sharepoint® servers, System State®, Active Directory® and Outlook®.
• Self-directed file restore enable users to restore their own lost or deleted files instantly, without compromising privacy or security, reducing IT overhead while maximizing user satisfaction and productivity.
• All-in-one integrated software, hardware and storage gives IT an unsurpassed experience with quick and simple deployment out of the box in less than 30 minutes, thus increasing IT productivity and ROI.

Disaster Recovery Options:

CDP Site-to-Site Data Backup automatically transmits and stores data using secure AES 256-bit encryption to another CDP appliance at a remote site. In the event the local CDP appliance is no longer viable, IT administrators can easily recover the latest version of data through an easy-to-use Web user interface.

CDP Offsite Data Backup Service automatically encrypts, transmits and stores data using AES 256-bit encryption to the SonicWALL Data Backup Center. In the event the local CDP appliance is no longer viable, IT administrators can easily recover the latest version of data through the CDP Web user interface.

CDP Local Archiving capability allows IT to store the latest version of business-critical data to a USB drive. Designed to help organizations meet regulatory compliance, Local Archiving enables administrators to browse archives and restore individual files. Local archiving is available on both upstream and downstream CDP appliances.

CDP Universal System Recovery applies SonicWALL Bare Metal Recovery (BMR) software to create an exact image of an entire Windows server or workstation including the operating system files, programs, databases and settings. Universal System Recovery wizard-driven interface enables IT administrators to quickly recover an entire system to dissimilar physical or virtual hardware easily, regardless of make, model or installed components.

Key Components:

CDP Appliance operates as a dedicated disk-based backup and disaster recovery appliance, enables all CDP features and functions, including storage, file and application versioning, and offsite encryption and transmission. The SonicWALL CDP appliance is configured and administered via the Web Management Interface.

Web Management Interface provides the system administrator with the ability to create, manage and enforce administrative-level global policies and tasks for agents connected to a SonicWALL CDP appliance. It also provides initial network configuration, system settings, agent and offsite management, diagnostics, logging, reporting, and error handling, and allows for a full purge of data from the appliance.

Agent Software provides individual users and system administrators the ability to configure, create and apply local backup policies, view backup status and recover lost data. With administrative authorization, a user can log in as an administrator to perform data recovery.

Recovery Manager for Exchange (RME) allows individual, message-level items to be restored from regular un-mounted .edb information store files without setting up a dedicated recovery server. It rapidly searches backups and databases for messages based on specified criteria, so it can easily recover from an accidental deletion or perform email discovery. Administrators can recover multiple mailboxes, single messages, public folders and more—all from a single interface. Administrators also can compare source and target folders for differences.

Universal System Recovery protects servers and workstations, their operating systems, and applications such as Exchange, SQL, SharePoint, Active Directory and Domain Controller Server®, as well as configuration settings and preferences. In case of a disaster, this enables administrators to quickly recover a complete system to dissimilar physical or virtual environments regardless of make, model, or installed components without having to rebuild a new system from the ground up.

Compare Models:

Model Specifications
Recommended Configuration	CDP 210	CDP 220	CDP 5040B	CDP 6080B
Workstation (recommended max.)1	30	50	100	250
Servers (recommended max.)1	5	5	10	15
Operating System Support
Windows Server 2003 and 2008 R2 (SE and EE)
Small Business Server 2003 & 2008 R2 (Standard and Premium)
Windows XP, Vista and Win 7 (All Versions)
Apple Mac OS X - Leopard, Snow Leopard & Server
Linux (Debian, SuSE, Fedora, Red Hat & Ubuntu)
Server Application Support
Number of Included Microsoft Application Licenses (additional licenses can be purchased)	0	1	3	3
Supported Microsoft Application:	The above licenses may be applied to any of the following Microsoft Applications: Microsoft Exchange 2003, 2007 and 2010 (included individual mailbox backup support), Microsoft SQL 2005 and 2008, Microsoft SharePoint 2010, Microsoft Active Directory, and Microsoft Small Business Server. Additional licenses may also be purchased to the maximum limits indicated above.
Microsoft Exchange 2003, 2007 and 20102(includes individual mailbox backup support)	Requires one license
Microsoft SQL Server 2005 & 20082	Requires one license
Microsoft SharePoint 20102	Requires one license
Active Directory2	Requires one license
Small Business Server2	Requires one license
System State
Recovery Manager for Exchange - Number of Mailbox Licenses Included	Options	50	100	250
File Server Agent License included (Windows, Apple and Linux)4	1	1	1	1
Workstation Agent License included (Windows and Apple)4	10	50	100	250
Client Application Support
Microsoft Outlook 2003, 2007 and 2010
Other Features
Backup & Recovery	Continuous Data Protection (CDP) Zero-downtime Automated Backup Version Trimming File Set Backup Methodology User Directed Recovery Chronological Data Versioning Agent-based+A27 Data De-duplication Open-file Support Advance Data Compression Volume Shadow Copy Service (Snapshot)
Flexible Recovery	Revision-based restore for files and all supported applications User self-directed restore Direct restore to application server Restore to alternative location Restore on reboot Direct restore from offsite location (Offsite Portal or CDP Appliance)
Security	AES-256 bit Encryption for data in-flight and at-rest
Management & Administration	System and Network Administration Extensive Scheduling Options Advanced Global Policy and Control Engine Bandwidth Management Quota Provisioning Reporting/Logging Agent-Level Detail Event Report File Filters
Appliance Characteristics
Form Factor	Desktop	Desktop	1U	2U
RAID Support	–	–	RAID 5	RAID 5
RAM included	512 MB	512 MB	2 GB	4 GB
Internal Drives Included (number of drive bay)	1	1	4	4 (8 max.)
Disk Drive Capacity, Type	1 TB SATA	2 TB SATA	2 TB SATA	2 TB SATA
Total Capacity	1 TB	2 TB	6 TB	6 TB
Total Capacity with expansion disk pack3	-	-	-	12 TB max3
Total Useable Capacity	860 GB	1.7 TB	5 TB	5 TB
Total Useable Capacity with expansion disk pack3	-	-	-	10 TB3
Total Useable Capacity (Typical 2:1 Compression)3	1,7 TB	3.4 TB	10 TB	10 TB (20 TB)3
Network Interface	100BaseT	100BaseT	1 GbE	1 GbE
Hot-swappable & Redundant Power Protection	-	-	-
Filed Replacement Hard Drive	-	-
Appliance Specification
Width	11 5/8 in (29.5 cm)	11 5/8 in (29.5 cm)	19 in (48.3 cm)	19 in (48.3 cm)
Height	2 1/2 in (6.4 cm)	2 1/2 in (6.4 cm)	1-3/4 in (4.4 cm)	3-1/2 in (8.9 cm)
Depth	10 3/4 in (27.3 cm)	10 3/4 in (27.3 cm)	21 1/4 in (54 cm)	27 1/2 in (69.9 cm)
Weight	6.6lbs (3kg) – not including AC/DC	6.6lbs (3kg) – not including AC/DC	26-3/4 lbs (12.1kg)	50 lbs (22.7kg) – Fully populated
Power
AC Inputs	90-264Vac Full Range, 63-47Hz	90-264Vac Full Range, 63-47Hz	100-240Vac Full Range, 60-50 Hz	100-240Vac Full Range, 60-50 Hz
AC Power Consumption	44.5W typical, 52W max	44.5W typical, 52W max	125W typical, 144W max	280W typical, 322W max
Total Heat Dissipation	177 BTU max	177 BTU max	491 BTU max	1098 BTU max
Environment, Operation & Storage
Relative Humidity	5-95% R.H., non-condensing
Operating Temp	0-40ºC
Storage Temp	-25 to 70ºC
Operationg Altitude	-200 to 13K ft (-60 to 4K m)
Storage Altitude	0-40K ft (0-12K m)
Mechanics, Vibrations & Sock
Acoustics	48.4 dB, at 24ºC environment	48.4 dB, at 24ºC environment	53.2 dB, at 24ºC environment	66 dB, at 24ºC environment
Operating Vibration	0.25Grms, 10-300Hz, Random Input	0.25Grms, 10-300Hz, Random Input	0.25Grms, 10-500Hz, Random	0.25Grms, 10-500Hz, Random
Non-Operating Vibration	0.50Grms, 10-300Hz, Random Input	0.50Grms, 10-300Hz, Random Input	0.50Grms, 10-500Hz, Random	0.50Grms, 10-500Hz, Random
Operating Shock	10G at 6ms, ½-sine shock pulse	10G at 6ms, ½-sine shock pulse	10G at 6ms, ½-sine shock pulses	10G at 6ms, ½-sine shock pulses
Non-Operating Shock	1 TB SATA	2 TB SATA	TBA	TBA
Support & Warranty
Support & Warranty	1-year Limited Hardware Warranty; 90-day Limited Software Warranty

1. These are estimated values and are subject to change without notice.  The maximum supported configuration can be more or less depending on your backup and network load and offsite upload.
2. One bundled application license can be used for backup and recovery of one supported Microsoft application from the following list: Exchange, SQL, SharePoint, Active Directory and Small Business Server.
3. Requires purchase of “Dell SonicWALL 4 Disk Pack Upgrade Kit”  (SKU: 01-SSC-9301).
4. Additional licenses may also be purchased to the maximum limits indicated.
