SonicWALL Email Security & Encryption
Protect your infrastructure from email threats and compliance violations with powerful, easy-to-use solutions

SonicWALL Email Security & Encryption

Solve the unique email security needs of your organization – whether you have one user or 100,000. From appliances and software to virtual appliances and services, our flexible solutions offer powerful protection against spam, phishing, viruses, and even ransomware threats - at a low total cost of ownership.

Overview:

SonicWALL Live Demo Site - Experience SonicWALL for yourself! Click here.Get easy, powerful email virus and spam protection

Ensure your email is safe, productive and cost-effective with the SonicWall next generation Email Security appliances, software, virtual appliances and services. Protect your email from ransomware, viruses, spam, and other zero-day emerging threats ─ while meeting email compliance mandates ─ for one individual or a 100,000-person company.

Experience comprehensive email protection from emerging zero-day threats in one, easy-to-manage solution. Keep your entire organization’s email safe and meet the needs of 1 to 100,000 users with SonicWall next-generation Email Security series appliances.

Bolster your defenses against email attacks

Protect against emerging zero-day attacks with the Capture Advance Threat Protection service. Our cloud-based sandboxing technology scans a broad range of email attachment types to detect advanced threats, analyze them in a multi-engine sandbox, block them prior to a security verdict, and rapidly deploy remediation signatures. Leverage multiple, patented protection techniques to stop spam and email attacks. Check email sender IP reputations, as well as the reputation of content, structure, links, images and attachments. Protect against directory harvest attacks (DHAs) and denial of service (DoS) attacks and ensure sender validation. Uncover new threats and hidden known threats with a Support Vector Machine (SVM) algorithm, adversarial Bayesian filtering, image analysis and gibberish detection. Identify spoofed mail and reduce spam and phishing attacks with powerful Domain-based Message Authentication, Reporting and Conformance (DMARC) email authentication technology. Get reports on sources and senders of email, so you can detect and shut down unauthorized senders falsifying email with your address.

Get immediate, accurate protection

Receive real-time threat updates from the SonicWall GRID network and ensure delivery of good email. The GRID network collects and analyzes information from industry threat lists, performs rigorous testing and evaluation of millions of emails every day, and establishes reputation scores for senders and content, identifying new threats as they occur.

Safeguard your network with the latest security updates

Ensure your anti-spyware and anti-virus is up to date, with SonicWall GRID Anti-Virus and premium anti-virus signatures from industry partners such as McAfee, Kaspersky, and Cyren. Safeguard your network from the time a new virus outbreak occurs until the time an anti-virus signature update is available with the predictive technology of SonicWall Time-Zero virus protection.

Seamlessly ensure compliance management and email encryption

Comply with regulatory mandates using advanced compliance scanning, management and, optionally, email encryption, to prevent confidential data leaks, regulatory violations and to ensure the secure exchange of sensitive data. Configure policies at the organizational level to scan outbound email content and attachments for sensitive data and route email for approval, archiving or encryption. Track encrypted email to confirm time of receipt and time opened. Recipient receives a notification email with easy instructions to log into a secure portal to read or securely download the email. No additional client software is necessary and, unlike competitive solutions, the encrypted email may be accessed and read from mobile devices and laptops.

Gain efficient and easy-to-use security

Get automatic spam filter updates and easily synchronize with LDAP. Achieve simple email management with customizable, at-a-glance dashboard. Multi-tenancy support allows large enterprise or managed service provider deployments with multiple departments or customers to establish organizational units with one or multiple domains. The deployment may be centrally managed, but still allows a given organizational unit to have its own users, sub-administrators, policy rules, junk boxes and more. Delegate spam management to end users and give them the freedom to personalize the aggressiveness of their spam-detection settings, while IT continues to control the overall level of security enforcement. Easily customize granular or system-wide reports and charts on threats, compliance, policy, connection management and more, with the customizable, drag and drop dashboard. Automatically generate reports as required.

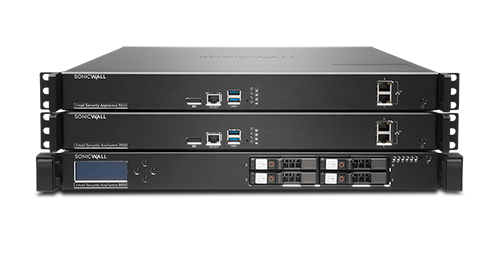

Model Lineup:


SonicWALL Email Security Appliances:

Email Security Appliance 3300

Email Security Appliance 3300

Protect up to 1,000 employees with affordable, powerful anti-spam, anti-virus and anti-phishing capabilities with content filtering and outbound email protection.

Email Security Appliance 4300

Email Security Appliance 4300

Stop spam, viruses and data leaks with a comprehensive, effective and scalable email security for organizations with up to 5,000 employees.

Email Security Appliance 8300

Email Security Appliance 8300

Achieve the highest email protection performance and enterprise-wide resiliency for environments with up to 10,000 employees.

Email Security Appliance 5000

Email Security Appliance 5000

Protect up to 1,000 employees with affordable, powerful anti-spam, anti-virus and anti-phishing capabilities with content filtering and outbound email protection.

Email Security Appliance 7000

Email Security Appliance 7000

Stop spam, viruses and data leaks with a comprehensive, effective and scalable email security for organizations with up to 5,000 employees.

Email Security Appliance 9000

Email Security Appliance 9000

Achieve the highest email protection performance and enterprise-wide resiliency for environments with up to 10,000 employees.

SonicWALL Email Security Software Solutions:

Email Security Virtual Appliance

Email Security Virtual Appliance

Receive total inbound and outbound email protection in a highly scalable VMware environment. Experience the same powerful security as a traditional SonicWall Email Security Appliance, only in a virtual form. Reduce capital costs, ease migrations and optimize utilization by leveraging your shared computing resources.

Email Security Software

Email Security Software

Benefit from complete inbound and outbound email protection on one system with the flexibility to change, update or add onto to your Windows-based system. Designed for organizations of 25 of more users, this software offers the same robust benefits as a traditional SonicWall Email Security Appliance, but allows you control both your platform and the email security application.

Hosted Email Security

Hosted Email Security

Offers superior, cloud-based protection from inbound and outbound threats, including spam, phishing, zombie attacks and malware, at an affordable, predictable and flexible monthly or annual subscription price. At the same time, it minimizes upfront deployment time and costs, as well as ongoing administration expenses.

Compare Models:


Email Security Appliances 5000 7000 9000
Domains Unrestricted
Operating System Hardened SonicWall Linux OS appliance
Rackmount Chassis 1U 1U 1U
CPU(s) Celeron G1820 i3-4330 E3-1275 v3
RAM 8 GB 16 GB 32 GB
Hard Drive 500 GB 1 TB 1 TB
Redundant Disk Array (RAID) RAID 1 RAID 5
Hot Swappable Drives No Yes Yes
Redundant Power Supply No No Yes
SAFE Mode Flash Yes Yes Yes
Dimensions 17.0 x 16.4 x 1.7 in
43.18 x 41.59 x 4.44 cm
17.0 x 16.4 x 1.7 in
43.18 x 41.59 x 4.44 cm
27.5 x 19.0 x 3.5 in
69.9 x 48.3 x 8.9 cm
Weight 16 lbs / 7.26 kg 16 lbs / 7.26 kg 50.0 lbs/ 22.7 kg
WEEE Weight 16 lbs / 7.37 kg 16 lbs / 22.2 kg 48.9 lbs/ 22.2 kg
Power Consumption (watts) 46 48 158
BTUs 155 162 537
MTBF @25C in hours 130,919 150,278 90,592
MTBF @25C in years 14.9 17.2 10.3
Email Security Software
Domains Unrestricted
Operating system Microsoft Hyper-V Server 2012 (64-bit) or higher
Windows Server 2008 R2 or higher x64 bit only
CPU Intel or AMD 64-bit processor
RAM 8 GB minimum configuration
Hard drive 160 GB minimum configuration
Email Security Virtual Appliance
Hypervisor ESXi and ESX (version 5.0 and newer)
Operating system installed 8 GB (expandable)
Allocated memory 4 GB
Appliance disk size 160 GB (expandable)
VMware hardware compatibility guide http://www.vmware.com/resources/compatibility/search.php

Appliance and software features – subscriptions available in 25, 50, 100, 250, 500, 1,000, 2,000, 5,000, and 10,000 user packs

Email Protection Email Security Appliance, Software & Virtual Appliance Hosted Email Security Comp. Anti-Spam Service (CASS)
Advanced reputation management
Sender IP reputation
DHA, DoS and NDR protection N/A
Advanced content management
GRIDprint reputation services
SonicWall GRID Anti-Virus
Patented phishing detection technology
Policy rules for users, groups or all users -
Add-on Services Email Security Appliance, Software & Virtual Appliance Hosted Email Security Comp. Anti-Spam Service (CASS)
Advanced zero-day threat protection – Capture ATP Optional Optional -
McAfee A/V with SonicWall Time-Zero Optional Optional -
Email compliance Optional Included -
Total Secure (includes McAfee AV, Kaspersky AV, Cyren AV SonicWALL Time Zero AV, compliance, 24 x7 support) Optional Included -
Email Encryption Optional Optional -
Easy Administration Email Security Appliance, Software & Virtual Appliance Hosted Email Security Comp. Anti-Spam Service (CASS)
Installation and configuration time 1 Hour 10 Minutes 10 Minutes
Reputation auto-updates every 5 minutes
Anti-Spam auto-updates every 5 minutes
GRID A/V auto-updates every 5 minutes
Customize, schedule & e-mail 30+ reports Basic Reports
Automatic Multi-LDAP Sync
Allow/deny all end-user controls
Per user junk boxes
Junk Button for Outlook -
Per user Anti-Spam aggressiveness
Per user allowed/blocked lists
Per user allowed/blocked lists
Judgment details
Rapid message search engine
Single Sign-on
System Features Email Security Appliance, Software & Virtual Appliance Hosted Email Security Comp. Anti-Spam Service (CASS)
Inbound & outbound in the same system Inbound Only
In-memory MTA for enhanced throughput
Maximum domains supported Unrestricted Unrestricted Unrestricted
Scalable split-mode architecture N/A N/A
Clustering & remote clustering N/A N/A
Deployment platform(s) ES Appliance Virtual Appliance Windows Server Hosted Service Firewall
Junk email blocking point ES Appliance Virtual Appliance Windows Server Hosted Service Firewall

How it Works:

SonicWall Email Security Deployments

Deployment Options:

SonicWall Email Security Deployments

The highly flexible architecture of SonicWall Email Security enables deployments in organizations that require a highly scalable, redundant and distributed email protection solution that can be centrally managed. SonicWall Email Security can be deployed in either all-in-one (Figure 1) or split mode (Figure 2).

In split mode, systems may be configured as a remote analyzer or a control center. In a typical split-mode setup, one or more remote analyzers is connected to a control center. The remote analyzer receives email from one or more domains and applies connection management, email filtering (anti-spam, anti-phishing and anti-virus) and advanced policy techniques to deliver benign email to the downstream email server. The control center centrally manages all remote analyzers and collects and stores junk email from the remote analyzers. Centralized management includes reporting and monitoring of all related systems. This paradigm allows the solution to costeffectively scale and protect both inbound and outbound email for growing organizations. Using SonicWall Email Security Virtual Appliances, split mode can be fully deployed on one or multiple servers for optimal efficiencies of scale.

Flexible, Scalable Deployment Options

All-in-one configuration (Figure 1) In an all-in-one configuration, filtering and management take place on the same system.

High availability deployment (Figure 2) For load balancing and redundancy, split mode enables organizations to filter at the network perimeter while providing centralized control. Administrators can easily synchronize SonicWall Email Security across multiple LDAP servers in distributed and hosted environments for scalable deployment.

Flexible, Scalable Deployment Options

Subscriptions & Support:

SonicWALL Anti-Virus Protection with McAfee

Add optional multi-layer anti-virus protection, including McAfee Signature updates, SonicWall Time-Zero virus protection and zombie detection.

SonicWALL Email Encryption Service

Prevent confidential data leaks and regulatory violations with advanced compliance scanning and management, including integrated email encryption cloud service to ensure secure exchange of sensitive data. Configure policies to scan outbound email content and attachments for sensitive data. When detected, the email is encrypted for secure email exchange with customers and partners. Encrypted email can be tracked to confirm the time of receipt and time opened. Intuitive for the recipient, a notification email is delivered to the recipient’s inbox with instructions to simply log into a secure portal to read or securely download the email. The service is cloud-based with no additional client software necessary and unlike competitive solutions; the encrypted email may be accessed and read from mobile devices or laptops.

SonicWALL Email Compliance Subscriptions

Promote compliance with internal and industry mandates, using compliance dictionaries, attachment scanning, approval boxes, record ID matching, archiving, encryption and compliance reports.

Email protection subscription with dynamic support (required with appliance or software purchase)

Deliver threat protection for SonicWall Email Security software or appliances, with SonicWall Email Protection subscription with Dynamic Support (8x5 or 24x7). You receive:

  • Automatic anti-spam, anti-phishing and anti-virus updates from the SonicWall GRID network
  • Software and firmware updates
  • Phone-based support (8x5 or 24x7), web-based support (anytime)
  • RMA for the appliance: 1-year warranty for repair or replacement of any defective product due to manufacturer’s defects

TotalSecure Email Subscription

Ensure greater return on investment and long-term value with a subscription bundle including SonicWall Email Protection subscription with 24x7 Dynamic Support, Email Compliance subscription, and multi-layer anti-virus protection, including McAfee, Kaspersky and Cyren signature updates, plus SonicWall Time-Zero virus protection and zombie detection.
