SonicWALL PoE Injectors
High-speed wireless that’s secure and easy to manage.

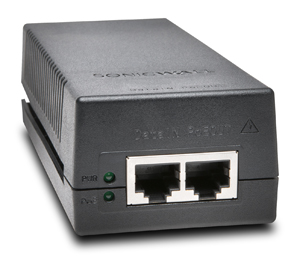

SonicWALL PoE Injector

SonicPoints are powered from a SonicWALL IEEE 802.11at Power over Ethernet (PoE) Injector or third-party device for easy deployment where electrical outlets are not readily accessible. The SonicPoint ACe can also be powered directly through an AC adapter.

SonicWALL Products
SonicWALL SonicPoint PoE Injectors
1 GbE 802.3at Gigabit PoE Injector
*Please note: This product will be replaced by 01-SSC-0716 after inventory is depleted.
This PoE Injector is required For SonicPoint-N Dual Radio, ACi, ACe, and N2 Access Points.
#01-SSC-5545
List Price: $59.00
Our Price: $50.00
1 GbE 802.3at Gigabit PoE Injector
*Please note: This new part number replaces 01-SSC-5545.
This PoE Injector is required For SonicPoint-N Dual Radio, ACi, ACe, and N2 Access Points.
#01-SSC-0716
List Price: $60.00
Our Price: $50.00
Model: 1 GbE 802.3at Gigabit PoE Injector (01-SSC-5545 and 01-SSC-0716)
Hardware Specifications:
Number of Ports 2: (1) Data In; (1) Data & Power Out
Dimensions 1.22(H) in x 2.30(W) in x 5.71(D) in; 31(H) mm x 58.5(W) mm x 145(D) mm
Weight 1.0 lbs (450g)
Connectors Shielded RJ-45, EIA 568A and 568B
Indicators System Indicator: AC Power (Green); User Indicator: Channel Power Active (Green)
Data Rates 10/100/1000 Mbps
Power over LAN Output:
Pin Assignment and Polarity 4/5 (+), 7/8 (-)
Output Power Voltage -48 VDC
User Port Power 15.4 W minimum
Input Power Requirements:
AC Input Voltage 100 to 240 VAC
AC Frequency 50 to 60 Hz
AC Input Currency 0.8A at 100-240 VAC
Standards and Compliance:
Regulatory Compliance CE, RoHS, WEE
Electromagnetic Emission and Immunity EN 55022 Class B (Emissions), FCC Part 15, Class B EN 55024 (Immunity), VCCI
Safety UL/cUL 60950-1, GS Mark per IEC 60950-1
Environmental Conditions:
Operating Ambient Temperature 32 to 104 °F, 0 to 40 °C
Operating Humidity Maximum 90%, non-condensing
Storage Temperature -4 to 158 °F, -20 to 70 °C
Storage Humidity Maximum 93%, non-condensing
Operating Altitude -1,000 to 10,000 ft. (-304.8 to 304.8 m)
