SonicWALL SuperMassive Series
Get uncompromising security, performance, speed, and visibility

SonicWALL SuperMassive Series

Designed with leading-edge threat inspection technology and hardware processing power, SonicWall SuperMassive high end firewalls support today’s largest, most complex and demanding security use cases. With comprehensive security services including sandboxing, SSL inspection, intrusion prevention, anti-malware, application identification and content filtering, SuperMassive is the ideal next-generation high end firewall for securing large distributed enterprises and data centers.

Overview:

High-Performance Network Security

  • Protect against advanced threats and exploits in real-time
  • Block evasive intrusions and attacks hiding in encrypted traffic
  • Monitor and control of application traffic
  • Centralize security management, analytics and reporting
  • Thwart command and control communications and data exfiltration

Scale your security for data center modernization

Scale your security for data center modernization To enable the growing digital business, expectations for IT organizations to lead and deliver value, responsiveness and security has reached an all-time high. Innovative services plus increased data and capacity requirements compel IT leaders to address new operational challenges through data center modernization. SonicWall provides a network-based model for scaling network security to solve complex and demanding data center operations - all at a low cost.

Stop advanced threats with network security segments

Modern threats take advantage of all areas of your network to succeed. In order to stop advanced attacks, networks need to be divided into security segments to contain and mitigate threat propagation. However, defining logical segments is only part of the solution. Effective segmentation requires an integrated, dynamic network security approach to comprehensively enforce the integrity of each and every segment, and do so manageably and affordably.

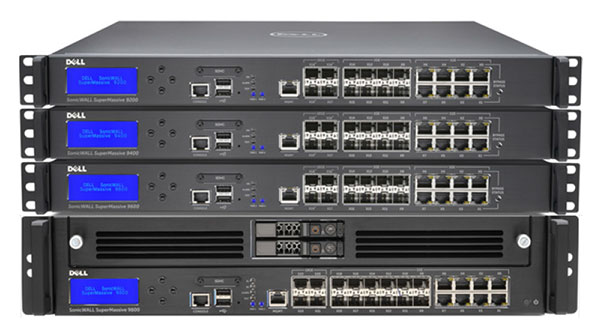

SuperMassive Model Lineup:

SonicWALL SuperMassive 9200

The SuperMassive 9200 Next-Generation Firewall (NGFW) is designed to deliver deep security to your enterprise at multi-gigabit speeds. Learn more about the NSA 2600 here!

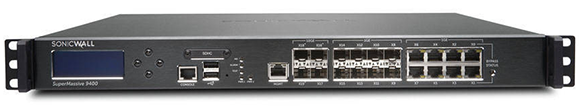

SonicWALL SuperMassive 9400

The SuperMassive 9400 Next-Generation Firewall (NGFW) is designed to deliver deep security to your enterprise at multi-gigabit speeds. Learn more about the NSA 3600 here!

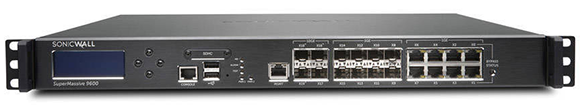

SonicWALL SuperMassive 9600

The SuperMassive 9600 Next-Generation Firewall (NGFW) is designed to deliver deep security to your enterprise at multi-gigabit speeds. Learn more about the NSA 4600 here!

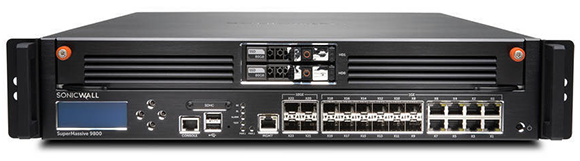

SonicWALL SuperMassive 9800

The SuperMassive 9800 Next-Generation Firewall (NGFW) is designed to deliver deep security to your enterprise at multi-gigabit speeds. Learn more about the NSA 5600 here!

Compare Models:


Models: 9200 9400 9600 9800
System Specifications
Operating System SonicOS
Cores 24 32 32 64
Interfaces 4x10GbE SFP+,
8x1GbE SFP,
8x1GbE,
1GbE Management,
1 Console
4x10GbE SFP+,
8x1GbE SFP,
8x1GbE,
1GbE Management,
1 Console
4x10GbE SFP+,
8x1GbE SFP,
8x1GbE,
1GbE Management,
1 Console
4x10GbE SFP+,
12x1GbE SFP,
8x1GbE,
1GbE Management,
1 Console
Memory (RAM) 8 GB 16 GB 32 GB 64 GB
Storage 8 GB 16 GB 32 GB 64 GB
Expansion 1 Expansion Slot (Rear)*, SD Card*
Management CLI, SSH, GUI, GMS
SSO users 80,000 90,000 100,000 110,000
Maximum SonicPoints supported 128 128 128 -
Logging Analyzer, Local Log, Syslog
High availability Active/Passive with State Sync, Active/Active DPI with State Sync
Firewall/VPN Performance 9200 9400 9600 9800
Firewall Inspection Throughput1 15 Gbps 20 Gbps 20 Gbps 28 Gbps
Full DPI Performance2 (GAV/GAS/IPS) 3 Gbps 4.4 Gbps 4.5 Gbps 9 Gbps
Application Inspection Throughput2 5 Gbps 10 Gbps 11.5 Gbps 20 Gbps
IPS Throughput2 5 Gbps 10 Gbps 11.5 Gbps 18 Gbps
Anti-Malware Inspection Throughput1 3.5 Gbps 4.5 Gbps 5 Gbps 9 Gbps
IMIX Performance 4.4 Gbps 5.5 Gbps 5.5 Gbps 6 Gbps
SSL inspection and decryption throughput (DPI SSL)2 1.0 Gbps 2.0 Gbps 2.0 Gbps 3 Gbps
VPN Throughput3 5 Gbps 10 Gbps 11.5 Gbps 14 Gbps
Connections/sec. 100,000/sec 130,000/sec 130,000/sec 230,000/sec
Maximum Connections (SPI) 5.0M 7.5M 10.0M 3.0M
Maximum Connections (DPI) 1.5M 1.5M 2.0M 2.5M
SSO User 8,000 (15,5006) 10,000 (17,5006) 12,000 (22,5006) 48,000
VPN 9200 9400 9600 9800
Site-to-site Tunnels 10,000 10,000 10,000 25,000
IPSec VPN Clients 2,000 (4,000) 2,000 (6,000) 2,000 (10,000) 2,000 (10,000)
SSL VPN NetExtender Clients (Maximum) 2 (3,000) 2 (3,000) 50 (3,000) 50 (50)
Encryption/Authentication DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B, Common Access Card (CAC)
Key Exchange Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN RIP, OSPF
Networking 9200 9400 9600 9800
IP Address Assignement Static, DHCP, PPPoE, L2TP and PPTP client, internal DHCP server, DHCP Relay4
NAT Modes 1:1, many:1, 1:many, flexible NAT (overlapping IPS), PAT, transparent mode
VLAN Interfaces 512
Routing Protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing, multicast
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication XAUTH/RADIUS, Active Directory, SSO, LDAP, Novell, internal user database, Terminal Services5, Citrix5
VoIP Full H323-v1-5, SIP
Standards TCP/IP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications UC APL4 , ICSA Enterprise Firewall, IPV6 Phase 2, VPNC, VPAT, FIPS 140-24 , Common Criteria NDPP4 , ICSA Anti-Virus4
Hardware 9200 9400 9600 9800
Power Supply Dual, redundant, hot swappable, 300 W Dual, redundant, hot swappable, 500 W
Fans Dual, redundant, hot swappable
Display Front LED Display
Input Power 100-240 VAC, 60-50 Hz
Maximum Power Consumption (W) 200 200 200 350
MTBF @25ºC in hours 188,719 187,702 186,451 126,144
MTBF @25ºC in years 21.53 21.43 21.28 14.40
Form Factor 1U Rack Mountable 1U Rack Mountable 1U Rack Mountable 2U Rack Mountable
Dimensions 17x19.1x1.75 in
(43.3x48.5x4.5 cm)
17x19.1x1.75 in
(43.3x48.5x4.5 cm)
17x19.1x1.75 in
(43.3x48.5x4.5 cm)
17x24x3.5 in
(9x60x43 cm)
Weight 18.1 lb (8.2 kg) 18.1 lb (8.2 kg) 18.1 lb (8.2 kg) 40.5 lb (18.38 kg)
WEEE Weight 23 lb (10.4 kg) 23 lb (10.4 kg) 23 lb (10.4 kg) 49.5 lb (22.4 kg)
Shipping Weight 29.3 lb (13.3 kg) 29.3 lb (13.3 kg) 29.3 lb (13.3 kg) 65 lb (29.64 kg)
Major Regulatory FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, ANATEL, BSMI, CU
Environment 15-40 deg C
Humidity 10-90% non-condensing

Notes:
1 Testing Methodologies: Maximum performance based on RFC 2544 (for firewall). Actual performance may vary depending on network conditions and activated services.
2 Full DPI/Gateway AV/Anti-Spyware/IPS throughput measured using industry standard Spirent WebAvalanche HTTP performance test and Ixia test tools. Testing done with multiple flows through multiple port pairs.
3 VPN throughput measured using UDP traffic at 1280 byte packet.
4 Applies to SuperMassive 9200, 9400 and 9600. SuperMassive 9800 UC APL certification is pending.
5 Supported on SonicOS 6.1 and 6.2.
6 For every 125,000 DPI connections reduced, the number of available DPI SSL connections increases by 750.
*Future use. All specifications, features and availability are subject to change.

Services & Add-Ons:

Advanced Gateway Security Suite (AGSS)

Leverage SonicWall Advanced Gateway Security Suite (AGSS) to deliver a multi-engine sandbox, powerful anti‐virus, anti‐spyware, intrusion prevention, content filtering, as well as application intelligence and control services. An upgrade over CGSS, this package features Capture Advanced Threat Protection (ATP), a multi-engine sandbox that runs and inspects suspicious files, programs and code in an isolated cloud-based environment.

Comprehensive Gateway Security Suite (CGSS)

Get the most from your deep packet inspection firewall with the SonicWall Comprehensive Security Suite (CGSS) subscription. CGSS includes gateway anti-virus, anti-spyware, intrusion prevention, application intelligence and control service, content/URL filtering and 24x7 support. Combine security, productivity and support in a single, bundled solution that lowers TCO.

Gateway Security Services

Enable your business firewall to provide real-time network threat prevention with SonicWall gateway anti-virus, anti-spyware, intrusion prevention and application intelligence and control. Block the latest blended threats — including viruses, spyware, worms, Trojans, software vulnerabilities and other malicious code. Guarantee bandwidth prioritization and ensure maximum network security and productivity with granular policies for both groups and users.

Capture Advanced Threat Protection

The cloud-based SonicWall Capture Advanced Threat Protection Service scans a broad range of files to detect advanced threats, analyzes them in a multi-engine sandbox, blocks them prior to a security verdict, and rapidly deploys remediation signatures. The result is higher security effectiveness, faster response times and a lower total cost of ownership.

Content Filtering Services

Gain a cost-effective, easy-to-manage way to enforce protection and productivity policies, and block inappropriate, unproductive and dangerous web content in educational, business or government environments. SonicWall Content Filtering Service lets you control access to websites based on rating, IP address, URL and more. You get the ideal combination of control and flexibility to ensure the highest levels of protection and productivity, which you can configure and control from your network security appliance, eliminating the need for a costly, dedicated filtering solution. Extend enforcement of your internal policies to devices located outside the firewall perimeter by blocking unwanted internet content with the content filtering client.

Content Filtering Client

Extend the enforcement of web policies in IT-issued devices outside the network perimeter. Although it doesn’t require a firewall, it can be optionally coupled with SonicWall Content Filtering Service as an ideal combination to keep students and employees off of dangerous or non-productive websites by switching to cloud-enforced policies even when they are using roaming devices.

Support Services

Benefit from advanced technical assistance and ongoing software and firmware updates with SonicWall Dynamic Support. The service includes:

  • Telephone and web-based support 24x7
  • Direct access to highly-trained senior support engineers
  • Advance exchange hardware replacement in the event of a failure
  • Access to electronic support tools

TotalSecure Hardware & Services Bundle

Enjoy the convenience and affordability of deploying your firewall as a SonicWall TotalSecure solution. This combines the hardware and services needed for comprehensive network protection from viruses, spyware, worms, Trojans, key loggers and more — without the complexity of building your own security package.

Comprehensive Anti-Spam Service

Block threats from your email server and stop spam at the gateway by adding SonicWall Comprehensive Anti-Spam Service (CASS) to your SonicWall firewall. Rapidly deploy your spam firewall software with one-click activation of up to 250 users.

Enforced Client Anti-Virus and Anti-Spyware Software

Execute an innovative, multi-layered, anti-virus internet security strategy with SonicWall firewalls and Enforced Client Anti-Virus and Anti-Spyware software. You get SonicWall Reassembly-Free Deep Packet Inspection anti-malware at the gateway, and enforced anti-virus protection at the endpoints. You can redirect any user with a non-compliant endpoint to a web page to install the latest Enforced Client Anti-Virus and Anti-Spyware software. Provide automatically updated security definitions to the endpoint as soon as they become available. Plus, you can automate enforcement to minimize administrative overhead.

Documentation:

Download the SonicWALL SuperMassive Series Datasheet (.PDF)
