SonicWALL SonicPoint
|
 |

|
SonicPoint |
| SonicWALL SonicPoint |
01-SSC-5522
List Price: $495.00
Our Price: $371.95 |
|
|
SonicPoint G |
| SonicWALL SonicPoint G
- Support for 802.11 b/g |
01-SSC-5536
List Price: $395.00
Our Price: $296.95 |
|
| SonicPoint
Bundle |
| 4 SonicPoint Distributed Wireless Devices |
01-SSC-5516
List Price: $1,800.00
Our Price: $1,350.95 |
|
| 8 SonicPoint Distributed Wireless Devices |
01-SSC-5519
List Price: $3,400.00
Our Price: $2,550.95 |
|
| SonicPoint
G Bundle |
| 4 SonicPoint G Distributed Wireless
Devices |
01-SSC-5512
List Price: $1,400.00
Our Price: $1,050.95 |
|
| 8 SonicPoint G Distributed Wireless
Devices |
01-SSC-5533
List Price: $2,700.00
Our Price: $2,025.95 |
|
|
Replacement Power Supply |
| Replacement Power Supply 12V-1.66A,
100-240V |
01-SSC-6830
List Price: $25.00
Our Price: $20.95 |
|
| SonicPoint
Support |
| SonicWALL Dynamic Support 24x7 for
Stand-alone SonicPoints, 1 Year |
01-SSC-6285
List Price: $115.00
Our Price: $89.95 |
|
SonicWALL Dynamic Support 8x5 for Stand-alone
SonicPoints, 1 Year
- Extended service agreement |
01-SSC-6284
List Price: $89.00
Our Price: $66.95 |
|
SonicWALL makes distributed wireless networking secure, simple
and cost-effective with the first total security solution that
integrates universal 802.11a/b/g wireless with an enterprise-class
firewall/VPN gateway. SonicWALL’s innovative Distributed Wireless
Solution scales to virtually any network deployment, whether
you’re adding wireless into an existing network infrastructure
or creating a new wireless network from the ground up.
Larger companies can take advantage of SonicWALL's trusted
wireless security functionality by deploying SonicPoints throughout
any network. SonicPoints are IEEE 802.11a/b/g satellite access
points that provide secure wireless LAN connectivity to users
on the network. SonicPoints are automatically configured and
centrally managed and updated by any SonicWALL TZ 170 or PRO
series security appliance. As a complement to the core components
of the Distributed Wireless Solution, SonicWALL also provides
solution enablers that aid in the rapid deployment of a wireless
network.
SonicWALL’s new wireless solution is built around our award-winning
line of Internet security appliances. Within a large office
building, network administrators can deploy the appropriate
PRO series or TZ 170 appliance as the gateway device, then simply
distribute SonicPoints at optimal locations throughout the building.
This eliminates the need for a separate wireless switch appliance
at the network perimeter, providing airtight wireless mobility
for employees as well as secure Internet access for guests.

Key Features and Benefits
- Comprehensive Security. SonicWALL’s Distributed
Wireless Solution provides total security enforcement for
both the wired and wireless networks through a single security
platform.
- Low TCO. SonicWALL’s Distributed Wireless Solution
removes the need to implement and separately manage an expensive
wireless-specific solution running in parallel to your wired
network.
- Scalable Coverage. SonicWALL’s Distributed Wireless
Solution extends wireless coverage area by simply adding
SonicPoints to the network as needed.
- Granular Access Control. SonicWALL’s Distributed
Wireless Solution allows network administrators to apply
firewall rules and security policies to all wireless and
wired traffic.
- Seamless Inter-office Mobility. SonicWALL’s Distributed
Wireless Solution ensures secure, uninterrupted network
access while roaming from one SonicPoint to another.
- Dual Band Wireless Monitoring. SonicWALL’s Distributed
Wireless Solution detects rogue access points on both the
2.4 and 5 GHz spectrums.
- Convenient Guest Internet Access. SonicWALL’s
Distributed Wireless Solution provides easy creation of
guest Internet accounts without compromising the integrity
of your network.
- Impenetrable Wireless Security. SonicWALL’s Distributed
Wireless Solution guarantees the highest level of security
by enforcing IPSec VPN connectivity to the WLAN for all
wireless traffic.
- Standards-based Solution. SonicWALL’s Distributed
Wireless Solution supports current and future wireless security
standards such as WPA and 802.11i without needing to upgrade
hardware.
|
SonicPoint
vs. SonicPoint G |
SonicPoint:
- Supports 802.11 a/b/g
- Non-detachable antennas
|
SonicPoint G:
- Supports 802.11 b/g
- Detachable antennas
|
Architecture:
SonicWALL recommends the following guidelines for managing
SonicPoints with TZ, PRO and NSA series appliances: (assuming
most current firmware release as of 1/8/08)
|
Managing Security Appliance |
Support on each Interface |
Total Support |
|
TZ 170/W/SPW |
8 SonicPoints on OPT interface |
8 SonicPoints |
|
TZ 180/W |
16 SonicPoints on OPT interface |
16 SonicPoints |
|
TZ 190/W |
16 SonicPoints on OPT interface |
16 SonicPoints |
|
PRO 1260 |
32 SonicPoints |
32 SonicPoints |
|
PRO 2040 |
64 SonicPoints |
96 SonicPoints |
|
PRO 3060 |
64 SonicPoints |
96 SonicPoints |
|
PRO 4060 |
64 SonicPoints |
64 SonicPoints |
|
PRO 4100 |
128 SonicPoints |
128 SonicPoints |
|
PRO 5060 |
128 SonicPoints |
128 SonicPoints |
|
NSA E5500 |
32 SonicPoints |
128 SonicPoints |
|
NSA E6500 |
32 SonicPoints |
128 SonicPoints |
|
NSA E7500 |
32 SonicPoints |
128 SonicPoints |

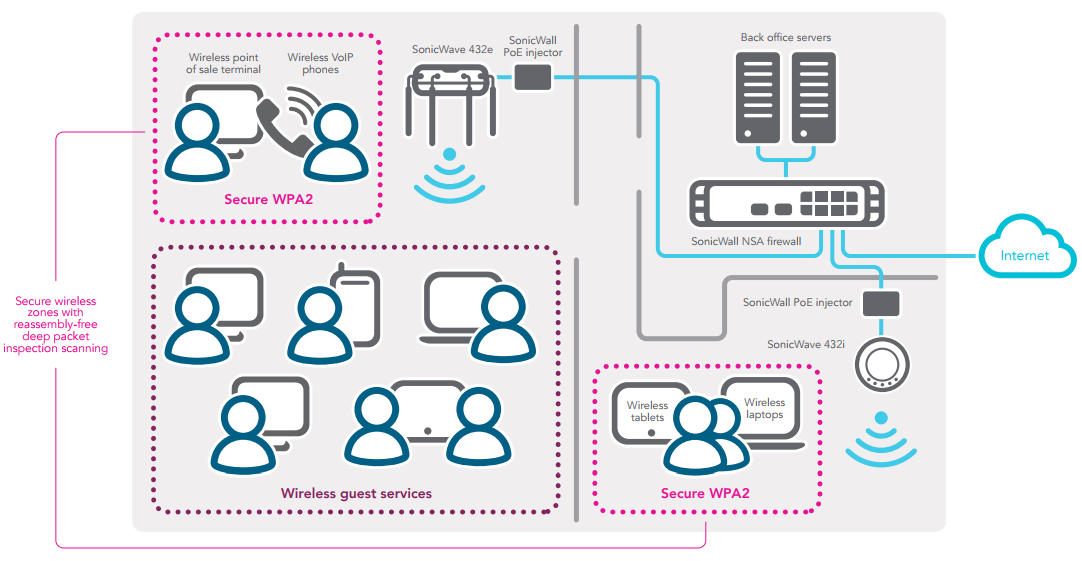

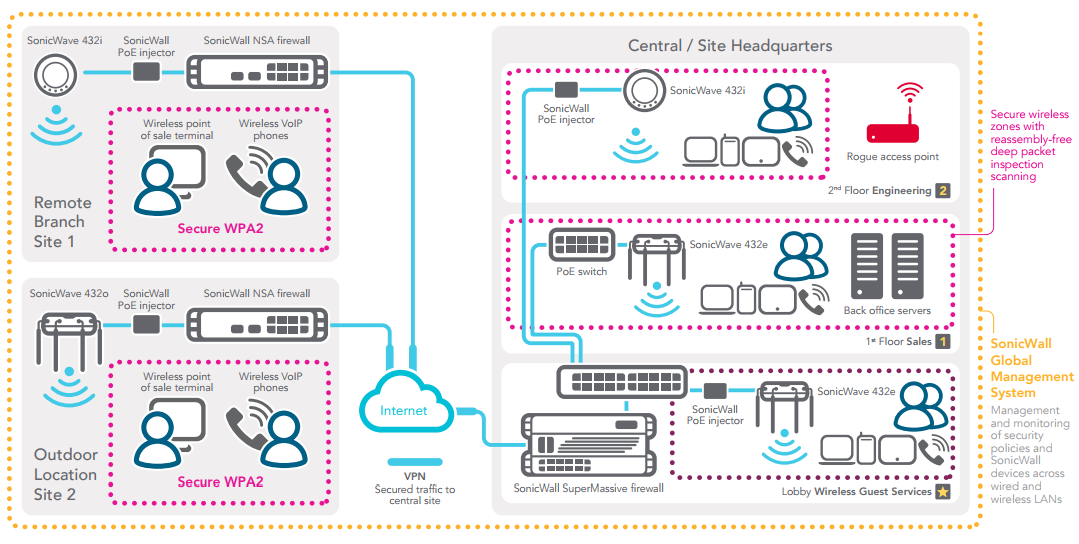

Please click on the image above to see
a larger version of our Distributed Wireless Solution architecture.

|
Technical Specifications |
|
Hardware |
|
Dimensions |
9.07 x 6.63 x 1.63 in/23.03 x 16.84 x 4.14 cm |
|
Weight: |
1.2 lbs
0.55 kg |
|
Power |
12V |
|
Antenna |
2 dual band 5dBi omni-directional diversity antennas
- 802.11a/b/g: Fixed
- 802.11b/g: Detachable, TNC antenna
interfaces
|
|
Status Indicators |
- 802.11a/b/g: 6 LEDS: power, 802.11a,
802.11b/g, LAN (10/100/link)
- 802.11b/g: 5 LEDS: power, 802.11b/g,
LAN (10/100/link)
|
|
Wired Network Ports |
1x10/100 auto-sensing RJ-45 port for Ethernet and
Power over Ethernet (PoE)
1xserial console port |
|
Mechanical |
Wall or ceiling mount kit |
|
Standards |
|
Compliance |
802.11i, IPSec, IEEE 802.11a/b/g, 802.11d, 802.3af,
WPA,TKIP, AES |
|
Regulatory |
- 802.11a/b/g: FCC/ICES Class B, CE,
C-Tick, VCCI Class B, BSMI Class B, MIC, NOM,
CCC
- 802.11b/g: FCC/ICES Class B, CE,
C-Tick, UL, cUL, TUV-GS, CB
|
|
Safety |
UL, cUL, TUV-GS, CB |
|
Environment |
|
Temperature Range |
32-104° F, 0-40° C |
|
Radio Specifications |
|
Frequency Band |
- 802.11a/b/g:
5.15-5.25 GHz, 5.25-5.35 GHz, 5.725-5.825
GHz
5.25-5.35 GHz, 5.725-5.825 GHz (Taiwan)
5.725-5.825 GHz no Turbo (Korea)
- 802.11b/g:
2.412 – 2.462 GHz (US, Canada, Taiwan)
2.412 – 2.484 GHz (Japan)
2.412 – 2.472 GHz (Europe ETSI)
2.457 – 2.462 GHz (Spain)
2.457 – 2.472 GHz (France)
|
|
Operating Channel |
- 802.11a/b/g: US & Canada: 12 channels
(FCC) Europe: 11, Japan: 4, Singapore: 4, Taiwan:
4
- 802.11b/g: US & Canada: 1-11 channels
(FCC) Europe: 1-13 (ETSI), Japan: 14, Spain:
2, France: 4
|
|
DFS |
Dynamic frequency selection supported |
|
Transmit Output |
Power based on the regulatory domain specified by
the system administrator |
|
TPC |
Transmit power control supported |
|
Data Rates Supported |
- 802.11a: 6, 9,12,18, 24, 36, 48,
54, 108 Mbps per channel
- 802.11b: 1, 2, 5.5,11 Mbps per channel
- 802.11g: 6, 9,12,18, 24, 36, 48,
54, 108 Mbps per channel
|
|
Modulation Technology |
- 802.11a: Orthogonal Frequency Division
Multiplexing (OFDM) BPSK, QPSK, 1-QAM, 64-QAM
- 802.11b: Direct Sequence Spread Spectrum
(DSSS) CCK, BPSK, QPSK
- 802.11g: Orthogonal Frequency Division
Multiplexing (OFDM) CCK, BPSK, QPSK,16-QAM,
64-QAM
|
|
Security |
|
Data Encryption |
Comprehensive signature database. Peer- to-peer
and instant messaging control and signature updates
through Distributed Enforcement Architecture |
|
Authentication |
|
Authenticators |
Static, (DHCP, PPPoE, L2TP and PPTP client), Internal
DHCP server, DHCP relay |
* When used with SonicWALL SSL-VPN
Series appliances
|
