SonicWall TZ Series Next-Generation Firewall (NGFW)

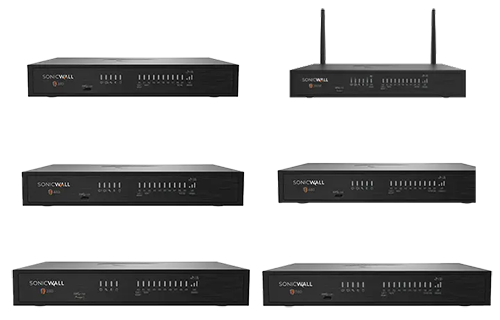

Wired Gen8 TZ Models

TZ280

Designed for home offices, small offices and lean branches

Threat Prevention (DPI): 1 Gbps
IPS throughput: 1.5 Gbps
Maximum connections (SPI): 1,000,000

TZ380

Designed for home offices, small offices and lean branches

Threat Prevention (DPI): 1.5 Gbps
IPS throughput: 2.0 Gbps
Maximum connections (SPI): 1,100,000

TZ480

Designed for home offices, small offices and lean branches

Threat Prevention (DPI): 2 Gbps
IPS throughput: 2.2 Gbps
Maximum connections (SPI): 1,200,000

TZ580

Designed for home offices, small offices and lean branches

Threat Prevention (DPI): 2.2 Gbps
IPS throughput: 2.5 Gbps
Maximum connections (SPI): 1,400,000

TZ680

Designed for home offices, small offices and lean branches

Threat Prevention (DPI): 2.5Gbps
IPS throughput: 3 Gbps
Maximum connections (SPI): 1,600,000

Wireless Gen8 TZ Models

TZ380W

Designed for home offices, small offices and lean branches

Threat Prevention (DPI): 1.5 Gbps
IPS throughput: 2.0 Gbps
Maximum connections (SPI): 1,100,000

Wired Gen7 TZ Models

TZ270

For customers in home offices and lean branches

Threat Prevention (DPI): 750 Mbps
DPI-SSL: 300 Mbps
Approximate Users: Up to 25

TZ370

For customers in small organizations and lean branches

Threat Prevention (DPI): 1 Gbps
DPI-SSL: 500 Mbps
Approximate Users: Up to 50

TZ470

For customers in small organizations and distributed enterprise with SD-branch locations

Threat Prevention (DPI): 1.5 Gbps
DPI-SSL: 600 Mbps
Approximate Users: Up to 80

TZ570

For customers in emerging enterprise, retail and SD-branch offices

Threat Prevention (DPI): 2 Gbps
DPI-SSL: 750 Mbps
Approximate Users: Up to 150

TZ570P

For customers in emerging enterprise, retail and SD-branch offices

Threat Prevention (DPI): 2 Gbps
DPI-SSL: 750 Mbps
Approximate Users: Up to 150

TZ670

For customers in emerging enterprise, retail and SD-branch offices

Threat Prevention (DPI): 2.5 Gbps
DPI-SSL: 800 Mbps
Approximate Users: Up to 200

Operate with License Wired Gen7 TZ Models

TZ80

For SOHO, IoT & small form-factor use cases

Threat Prevention (DPI): 750 Mbps
DPI-SSL: 750 Mbps
Approximate Users: Up to 25

Wireless Gen7 TZ Models

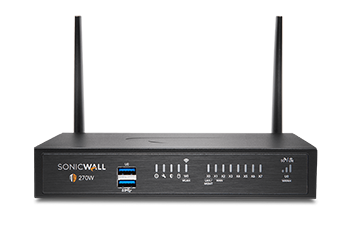

TZ270W (Wireless)

For customers in home offices and lean branches

Threat Prevention (DPI): 750 Mbps
DPI-SSL: 300 Mbps
Approximate Users: Up to 25

TZ370W (Wireless)

For customers in small organizations and lean branches

Threat Prevention (DPI): 1 Gbps
DPI-SSL: 500 Mbps
Approximate Users: Up to 50

TZ470W (Wireless)

For customers in small organizations and distributed enterprise with SD-branch locations

Threat Prevention (DPI): 1.5 Gbps
DPI-SSL: 600 Mbps
Approximate Users: Up to 80

TZ570W (Wireless)

For customers in emerging enterprise, retail and SD-branch offices

Threat Prevention (DPI): 2 Gbps
DPI-SSL: 750 Mbps
Approximate Users: Up to 150

Overview

In an era of the ever-evolving security landscape, small- and medium-sized businesses (SMB) face large challenges when it comes to defending their networks, data and reputation. Keeping up with changes in technology can be as difficult as tracking the growing number of threats.

The SonicWall TZ series of firewalls is designed specifically for the needs of SMBs and branch locations, delivering enterprise-class security without the enterprise-grade complexity.

With Zero-Touch Deployment and simplified centralized management, installation and operation is easy. Detect sophisticated threats, including encrypted attacks, with advanced networking and security features, like the multi-engine Capture Advanced Threat Protection (ATP) cloud-based sandbox service with patent-pending Real-Time Deep Memory Inspection (RTDMI™). With optional features like PoE/PoE+ support and 802.11ac Wi-Fi, create a unified security solution for wired and wireless networks.

Simply plug in and enjoy the advanced protection of the cost-effective SonicWall TZ series firewall without worrying about complex management — or the next threat.

Features

‘Single-pane-of-glass’ Management & Reporting

Manage everything from one location with Network Security Manager, a unified firewall management system that scales for any environment.

SD-WAN and Zero-Touch Deployment Capabilities

SonicWall Secure SD-WAN integrates with TZ firewalls without requiring an additional license, and scales quickly with Zero-Touch Deployment capability.

Deep Memory
Inspection

Block even the most advanced attacks with Real-Time Deep Memory Inspection (RTDMI™) and Capture Advanced Threat Protection (ATP).

SSL/TLS Decryption and Inspection

Leverage industry-leading decryption and inspection of TLS/SSL-encrypted traffic in real time, along with TLS 1.3 support.

Advanced Threat Prevention with Deep Memory Inspection

Get fast performance with security processors optimized for speed
Gain a deeper level of threat prevention through Real-Time Deep Memory Inspection (RTDMI™)
Leverage shared threat intelligence for continuously updated security
Rely on a wide range of rich features in SonicWall’s powerful SonicOS operating system

Superior Performance

Leverage multi-core, parallel-processing hardware architecture
Achieve fast performance using gigabit and multi-gigabit Ethernet interfaces
Take advantage of single-pass, stream-based inspection
Inspect simultaneous network streams using deep packet inspection

Network Control and Flexibility

Get your firewall up and running quickly with Zero-Touch Deployment
Grow your distributed network while lowering costs with Secure SD-WAN
Power your PoE-enabled devices with integrated PoE/PoE+ support
Gain insight into and control over application usage across the network

Secure, Easy-to-Use Mobile Connectivity

Access resources behind the firewall remotely and securely using native 802.11ac wireless SSL VPN
Connect from virtually any operating system
Detect and remove hidden threats over the VPN connection

Compare Models

Firewall General	TZ270 SERIES	TZ370 SERIES	TZ470 SERIES	TZ570 SERIES	TZ670 SERIES
Operating system	SonicOS 7.0
Interfaces	8x1GbE, 2 USB 3.0, 1 Console	8x1GbE, 2 USB 3.0, 1 Console	8x1GbE, 2x2.5G SFP+, 2 USB 3.0, 1 Console	8x1GbE, 2x5G SFP+, 2 USB 3.0, 1 Console	8x1GbE, 2x10G SFP+, 2 USB 3.0, 1 Console
Wireless support	2x2 802.11ac Wave 2 (TZ270W)	2x2 802.11ac Wave 2 (TZ370W)	2x2 802.11ac Wave 2 (TZ470W)	2x2 802.11ac Wave 2 (TZ570W)	N/A
Power over Ethernet (PoE) support	N/A	N/A	N/A	5 PoE or 3PoE+ (TZ570P)	N/A
Storage Expansion slot	Optional up to 256GB				Optional up to 256GB, 32GB included
Management	Network Security Manager, CLI, SSH, Web UI, GMS, REST APIs
Redundant power supply	N/A	N/A	N/A	Yes	Yes
Single Sign-On (SSO) Users	1,000	1,000	2,500	2,500	2,500
VLAN interfaces	64	128	128	256	256
Access points supported (maximum)	16	16	32	32	32
Firewall/VPN Performance	TZ270 SERIES	TZ370 SERIES	TZ470 SERIES	TZ570 SERIES	TZ670 SERIES
Firewall inspection throughput¹	2 Gbps	3 Gbps	3.5 Gbps	4 Gbps	5 Gbps
Threat Prevention throughput²	750 Mbps	1 Gbps	1.5 Gbps	2 Gbps	2.5 Gbps
Application inspection throughput²	1 Gbps	1.5 Gbps	2 Gbps	2.5 Gbps	3 Gbps
IPS throughput²	1 Gbps	1.5 Gbps	2 Gbps	2.5 Gbps	3 Gbps
Anti-malware inspection throughput²	750 Mbps	1 Gbps	1.5 Gbps	2 Gbps	2.5 Gbps
TLS/SSL inspection and decryption throughput (DPI SSL)²	300 Mbps	500 Mbps	600 Mbps	750 Mbps	800 Mbps
IPSec VPN throughput³	750 Mbps	1.38 Gbps	1.5 Gbps	1.8 Gbps	2.1 Gbps
Connections per second	6,000	9,000	12,000	16,000	25,000
Maximum connections (SPI)	750,000	900,000	1,000,000	1,250,000	1,500,000
Maximum connections (DPI)	150,000	200,000	550,000	400,000	500,000
Maximum connections (DPI SSL)	25,000	30,000	35,000	50,000	75,000
VPN	TZ270 SERIES	TZ370 SERIES	TZ470 SERIES	TZ570 SERIES	TZ670 SERIES
Site-to-site VPN tunnels	50	100	150	200	250
IPSec VPN clients (maximum)	5 (200)	5 (200)	5 (200)	10 (500)	10 (500)
SSL VPN licenses (maximum)	1 (50)	2 (100)	2 (150)	2 (200)	2 (250)
Encryption/authentication	DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange	Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN	RIP, OSPF, BGP
Certificate support	Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN features	Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported	Microsoft® Windows 10
NetExtender	Microsoft Windows 10, Linux
Mobile Connect	Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10
Security Services	TZ270 SERIES	TZ370 SERIES	TZ470 SERIES	TZ570 SERIES	TZ670 SERIES
Deep Packet Inspection services	Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS)	HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service	Yes
Application Visualization	Yes
Application Control	Yes
Capture Advanced Threat Protection	Yes
Networking	TZ270 SERIES	TZ370 SERIES	TZ470 SERIES	TZ570 SERIES	TZ670 SERIES
IP address assignment	Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes	1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols⁴	BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS	Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication	LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database	150	250	250	250	250
VoIP	Full H.323v1-5, SIP
Standards	TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications	Granted: FIPS 140-2 Level 2 (with Suite B), IPv6/USGv6, ICSA Network Firewall, ICSA Firewall Enterprise, ISCA Network Antivirus / AntiMalware Pending: Common Criteria NDPP (with VPN and IPS), DoDIN, CSfC
High availability	Active/Standby with stateful synchronization
Hardware	TZ270 SERIES	TZ370 SERIES	TZ470 SERIES	TZ570 SERIES	TZ670 SERIES
Form factor	Desktop⁴
Power supply	36W external	36W external	36W external	60W external (TZ570/570W), 180W external (TZ570P only)	60W external
Maximum power consumption (W)	16.84 (TZ270), 18.91 (TZ270W)	16.84 (TZ370), 18.91 (TZ370W)	19.95 (TZ470), 21.98 (TZ470W)	13.4 (TZ570), 15.3 (TZ570W), 108.75 (TZ570P)	13.1
Input power	100-240 VAC, 50-60 Hz, 3A	100-240 VAC, 50-60 Hz, 3A	100-240 VAC, 50-60 Hz, 3A	100-240 VAC, 50-60 Hz	100-240 VAC, 50-60 Hz
Total heat dissipation (BTU)	57.42 (TZ270), 64.48 (TZ270W)	57.42 (TZ270), 64.48 (TZ270W)	68.03 (TZ470), 74.95 (TZ470W)	44.7 (TZ570), 52.17 (TZ570W), 370.84 (TZ570P)	55.1
Dimensions	3.5x13.5x19 (cm) 1.8x5.3x7.5 (in)	3.5x13.5x19 (cm) 1.8x5.3x7.5 (in)	3.5x13.5x19 (cm) 1.8x5.3x7.5 (in)	3.5x15x22.5 (cm) 1.38x5.91x8.85 in	3.5x15x22.5 (cm) 1.38x5.91x 8.85 in
Weight	0.82 kg / 1.81 lbs (TZ270), 0.85 kg / 1.87 lbs (TZ270W)	0.82 kg / 1.81 lbs (TZ370), 0.85 kg / 1.87 lbs (TZ370W)	0.83 kg / 1.82 lbs (TZ470), 0.87 kg / 1.92 lbs (TZ470W)	0.97 kg / 2.14 lbs (TZ570), 0.99 kg / 2.18 lbs (TZ570W), 1.05 kg / 2.31 lbs (TZ570P)	0.97 kg / 2.14 lbs
WEEE weight	1.18 kg / 2.6 lbs (TZ270), 1.24 kg / 2.73 lbs (TZ270W)	1.18 kg / 2.6 lbs (TZ370), 1.24 kg / 2.73 lbs (TZ370W)	1.24 kg / 2.73 lbs (TZ470), 1.27 kg / 2.8 lbs (TZ470W)	1.42 kg / 3.13 lbs (TZ570), 1.47 kg / 3.24 lbs (TZ570W), 1.57 kg / 3.46 lbs (TZ570P)	1.42 kg / 3.13 lbs
Shipping weight	1.41 kg / 3.11 lbs (TZ270), 1.47 kg / 3.25 lbs (TZ270W)	1.41 kg / 3.11 lbs (TZ370), 1.47 kg / 3.25 lbs (TZ370W)	1.43 kg / 3.15 lbs (TZ470), 1.51 kg / 3.33 lbs (TZ470W)	1.93 kg / 4.25 lbs (TZ570), 1.98 kg / 4.36 lbs (TZ570W), 2.08 kg / 4.58 lbs (TZ570P)	1.93 kg / 4.25 lbs
MTBF (in years)	51.1 (TZ270), 27.1 (TZ270W)	51.1 (TZ370), 27.1 (TZ370W)	46 (TZ470), 24.1 (TZ470W)	26.1 (TZ570), 23.3 (TZ570W), 31.7 (TZ570P)	43.9
Environment (Operating/Storage)	32°-105° F (0°-40° C) / -40° to 158° F (-40° to 70° C)
Humidity	5-95% non-condensing
Regulatory	TZ270 SERIES	TZ370 SERIES	TZ470 SERIES	TZ570 SERIES	TZ670 SERIES
Major regulatory compliance (wired models)	FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL	FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, BSMI, KCC MSIP, ANATEL	FCC Class B, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL	FCC Class B, FCC, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL/cUL, TUV GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/ MSIP, ANATEL	FCC Class B, FCC, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL/cUL, TUV/GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/ MSIP, ANATEL
Major regulatory compliance (wireless models)	FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, ANATEL	FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/ TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, ANATEL	FCC Class B, FCC RF ICES Class B, IC RF CE (R&TTE, EMC, LVD, RoHS), RCM, VCCI Class B, MIC/TELEC, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE, REACH, ANATEL	FCC Class B, FCC P15C, FCC P15E, ICES Class B, ISED/ IC, CE (RED, RoHS), C-Tick, VCCI Class B, Japan Wireless, UL/cUL, TUV GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, NCC (TW) KCC/MSIP, SRRC, ANATEL	N/A
Major regulatory compliance (PoE models)	N/A	N/A	N/A	FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, UL/ cUL, TUV/ GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/ MSIP, ANATEL	N/A
Integrated Wireless⁵	(TZ270W / 370W/ 470W / 570W ONLY)
Standards	802.11a/b/g/n/ac Wave 2, WEP, WPA, WPA2, 802.11i, TKIP, PSK,02.1x, EAP-PEAP, EAP-TTLS
Frequency bands	802.11a: 5.180-5.825 GHz; 802.11b/g: 2.412-2.472 GHz; 802.11n: 2.412-2.472 GHz, 5.180-5.825 GHz; 802.11ac: 5.180-5.825 GHz
Operating channels	802.11a: US and Canada 12, Europe 11, Japan 4, Singapore4, Taiwan 4; 802.11b/g: US and Canada 1-11, Europe 1-13, Japan (14-802.11b only); 802.11n (2.4 GHz): US and Canada 1-11, Europe 1-13, Japan 1-13; 802.11n (5 GHz): US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64; 802.11ac: US and Canada 36-48/149-165, Europe 36-48, Japan 36-48, Spain 36-48/52-64
Transmit output power	Based on the regulatory domain specified by the system administrator
Transmit power control	Yes
Data rates supported	802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11b: 1, 2, 5.5, 11 Mbps per channel; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel; 802.11n: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 15, 30, 45, 60, 90, 120, 135, 150 Mbps per channel; 802.11ac: 7.2, 14.4, 21.7, 28.9, 43.3, 57.8, 65, 72.2, 86.7, 96.3, 15, 30, 45, 60, 90, 120, 135, 150, 180, 200, 32.5, 65, 97.5, 130, 195, 260, 292.5, 325, 390, 433.3, 65, 130, 195, 260, 390, 520, 585, 650, 780, 866.7 Mbps per channel
Modulation technology spectrum	802.11a: Orthogonal Frequency Division Multiplexing (OFDM); 802.11b: Direct Sequence Spread Spectrum (DSSS); 802.11g: Orthogonal Frequency Division Multiplexing (OFDM)/Direct Sequence Spread Spectrum (DSSS); 802.11n: Orthogonal Frequency Division Multiplexing (OFDM); 802.11ac: Orthogonal Frequency Division Multiplexing (OFDM)

*Future use.

¹ Testing Methodologies: Maximum performance based on RFC 2544 (for firewall). Actual performance may vary depending on network conditions and activated services.

² Threat Prevention/GatewayAV/Anti-Spyware/IPS throughput measured using industry standard Spirent WebAvalanche HTTP performance test and Ixia test tools. Testing done with multiple flows through multiple port pairs. Threat Prevention throughput measured with Gateway AV, Anti-Spyware, IPS and Application Control enabled.

³ VPN throughput measured using UDP traffic at 1280 byte packet size adhering to RFC 2544. All specifications, features and availability are subject to change.

⁴ BGP is available only on SonicWall TZ400, TZ500 and TZ470.

⁵ All TZ integrated wireless models can support either 2.4GHz or 5GHz band. For dual-band support, please use SonicWall's wireless access point products

Legacy Models

Customer Loyalty Program Eligible Product Matrix:

Eligible SonicWall products and replacement products

Firewall Appliances
Eligible products	Replacement products
TZ 150, TZ 100, TZ 105, SOHO, SOHO 250, TZ 170, TZ 200, TZ 205, TZ 300,TZ 350, TZ 180, TZ 210, TZ 215, TZ 400, TZ 190, NSA 220, NSA 240, NSA 250,TZ 500, TZ 600, PRO 100 Series, SOHO Series, Telecommuter, DMZ,XPRS Series, Plus, TELE Series	SOHO 250, TZ 270, TZ 350, TZ 370, TZ 400, TZ 470, TZ 500, TZ 570,TZ 600, TZ 670
TZ 190, NSA 220, NSA 240, NSA 250, TZ 400, TZ 470,TZ 500, TZ 570,TZ 600, TZ 670	TZ 500, TZ 570, TZ 600, TZ 670, NSA 2600, NSa 2650, NSa 2700
NSA 2400, NSA 2600, NSa 2650, PRO 200, PRO 230, PRO 1260, PRO 2040	TZ 500, TZ 570,TZ 600, TZ 670, NSA 2600, NSa 2650, NSa 2700, NSA 3600, NSa 3650, NSa 3700
NSA 3500, NSA 3600, NSa 3650, PRO 3060,PRO 4000, PRO 4100,PRO 4060, PRO-VX, PRO 300, PRO 330 GX250	NSA 2600, NSA 2650, NSa 2700, NSA 3600, NSa 3650, NSa 3700, NSA 4600, NSa 4650, NSa 4700
NSA 4500, NSA 4600,NSa 4650	NSA 3600, NSa 3650, NSa 3700, NSA 4600, NSa 4650, NSa 4700,NSA 5600, NSa 5650, NSa 5700
NSA 5000, NSA E5500, NSA 5600, NSa 5650, PRO 5060c, PRO 5060f, GX650	NSA 4600, NSa 4650, NSa 4700, NSA 5600, NSa 5650, NSa 5700, NSA 6600, NSa 6650, NSa 6700
NSA E6500, NSA 6600, NSa 6650, NSA E7500, NSA E7510, NSA E8500,NSA E8510	NSa 5650, NSa 5700, NSa 6650, NSa 6700, SM 9200, NSa 9250,NSsp 10700, SM 9400, NSa 9450, NSsp 11700
SM 9200, NSa 9250, SM 9400, NSa 9450	NSa 6700, SM 9200, NSa 9250, SM 9400, NSa 9450, SM 9600, NSa 9650,SM 9800, NSsp 10700, NSsp 11700
SM 9600, NSa 9650, SM 9800, SM E10200, SM E10400, SM E10800	SM 9200, NSa 9250, SM 9400, NSa 9450, SM 9600, NSa 9650, SM 9800,NSsp 11700, NSsp 13700, NSsp 15700
Virtual Appliances
Eligible products	Replacement products
NSv 10, NSv 25, NSv 50, NSv 100, NSv 200 , TZ 150, TZ 100, TZ 105, SOHO, SOHO 250, TZ 170, TZ 200, TZ 205, TZ 300, TZ 350, TZ 180, TZ 210,TZ 215, TZ 400, TZ 190, NSA 220, NSA 240, NSA 250, TZ 500, TZ 600, PRO 100 Series, SOHO Series, Telecommuter, DMZ, XPRS Series, Plus, TELE Series	NSv 200, NSv 270
NSv 200, NSv 300, NSv 400, NSA 2400, NSA 2600, NSa 2650, NSA 3500, NSA 3600, NSa 3650, NSA 4500, NSA 4600,NSa 4650, NSA 5000,NSA E5500, NSA 5600, NSa 5650, NSA E6500, NSA 6600, NSa 6650, NSA E7500, NSA E7510, NSA E8500, NSA E8510, SM 9200, NSa 9250, SM 9400, NSa 9450,SM 9600 NSa 9650, SM 9800	NSv 400, NSv 470
NSv 200, NSv 300, NSv 400, NSv 800, NSv 1600, NSv 800, NSA E6500, NSA 6600, NSa 6650, NSA E7500, NSA E7510, NSA E8500, NSA E8510, SM 9200, NSa 9250, SM 9400, NSa 9450,SM 9600, NSa 9650, SM 9800	NSv 800, NSv 870
Wireless Access Point Appliances
Eligible products	Replacement products
SonicPoint, SonicPoint A/B/G, SonicPoint G, SonicPoint-N Dual-Band, SonicPoint-Ne Dual-Band, SonicPoint-Ni Dual-Band, SonicPoint-N Dual-Radio, SonicPoint ACe, SonicPoint ACi, SonicPoint N2, SonicWave 231c, SonicWave 224w, SonicWave 231o, SonicWave 432e, SonicWave 432i	SonicWave 432o, SonicWave 621, SonicWave 641, SonicWave 681
Email Security Appliances
Eligible products	Replacement products
ESA 200, ESA 300, ESA 400, ESA 3300	ESA 5000 or ESA 7000 Virtual Appliance or Hosted Email Security
ESA 500, ESA 6000, ESA 4300	ESA 7000 or ESA 9000 Virtual Appliance or Hosted Email Security
ESA 8000, ESA 8300	ESA 9000 or Virtual Appliance or Hosted Email Security
Secure Mobile Access
Eligible products	Replacement products
SSL VPN 200, SSL VPN 2000, SRA 1200, SRA 1600, SMA 200	SMA 210, 410, 500v
SSL VPN 2000, SSL VPN 4000, SRA 1200, SRA 1600, SRA 4200, SRA 4600,	SMA 410, SMA 500v
EX6000, EX7000, SMA 6200, SMA 7200	SMA 6210, SMA 7210, SMA 8200v

SonicWall TZ Series (Gen 8)

Integrated SD-Branch platform with high efficacy next-gen firewalls for SMBs & branch offices

Wired Gen8 TZ Models

TZ280

TZ380

TZ480

TZ580

TZ680

Wireless Gen8 TZ Models

TZ380W

Wired Gen7 TZ Models

TZ270

TZ370

TZ470

TZ570

TZ570P

TZ670

Operate with License Wired Gen7 TZ Models

TZ80

Wireless Gen7 TZ Models

TZ270W (Wireless)

TZ370W (Wireless)

TZ470W (Wireless)

TZ570W (Wireless)

Overview

Features

‘Single-pane-of-glass’ Management & Reporting

SD-WAN and Zero-Touch Deployment Capabilities

Deep Memory
Inspection

SSL/TLS Decryption and Inspection

Advanced Threat Prevention with Deep Memory Inspection

Superior Performance

Network Control and Flexibility

Secure, Easy-to-Use Mobile Connectivity

Compare Models

Legacy Models

Customer Loyalty Program Eligible Product Matrix:

Eligible SonicWall products and replacement products

Get a Quote!
